Description: The Oslo lever with inbuilt privacy lock is fire-rated to 2 hours making it the perfect option for any commercial project. Available in Iver's full range of finishes and complementing other Iver products and accessories.
For internal doors where privacy is needed, including bathrooms, powder rooms, offices and bedrooms.
Notes: All Oslo levers and backplates have been successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014). Please note that the Oslo Return lever with inbuilt privacy lock is not DDA compliant, for more details contact a member of our sales team. This product comes with face fix wood screws, tie bolts and privacy tube latch. Euro and privacy punch outs are 85mm CTC. Half sets in this range are available fixed or operable.

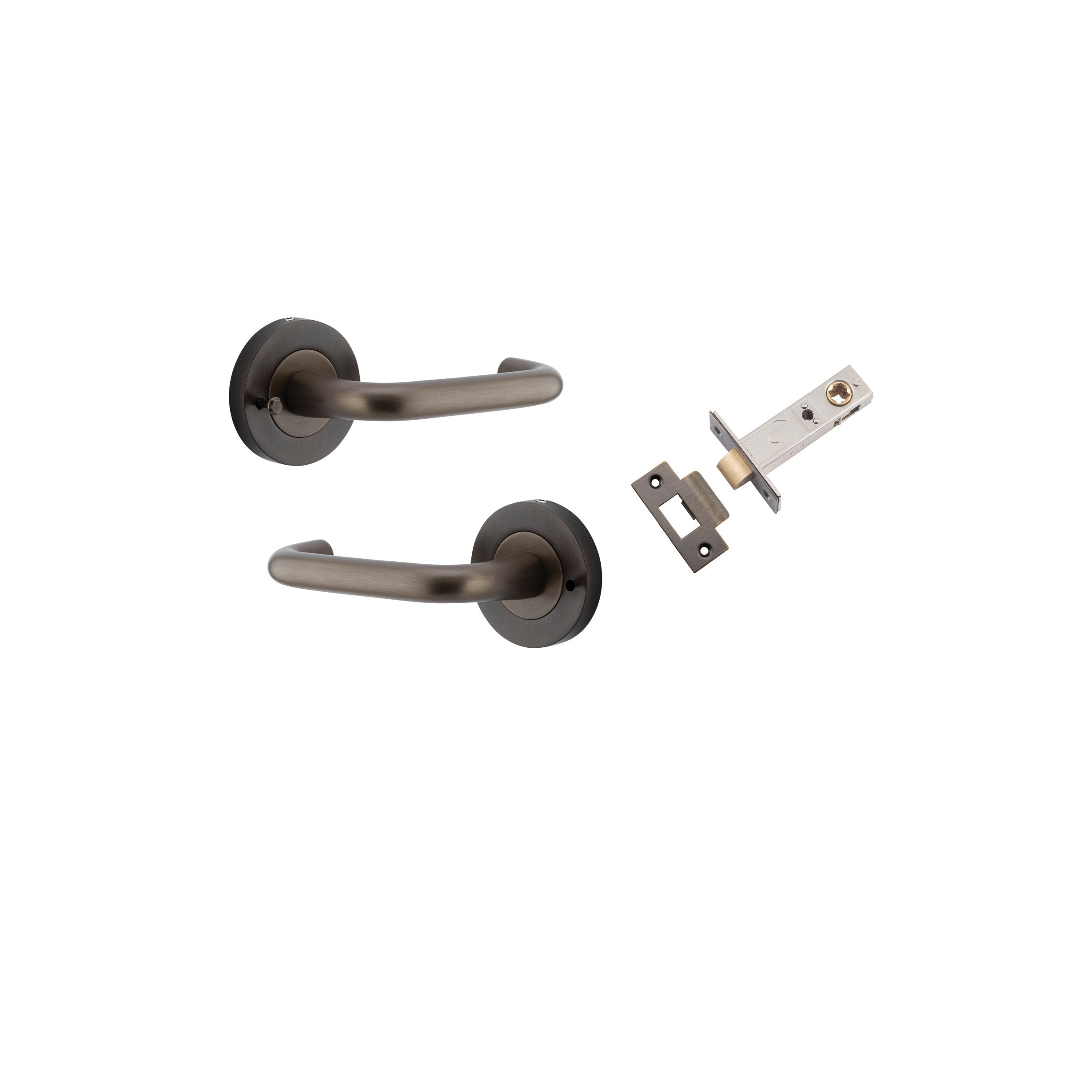

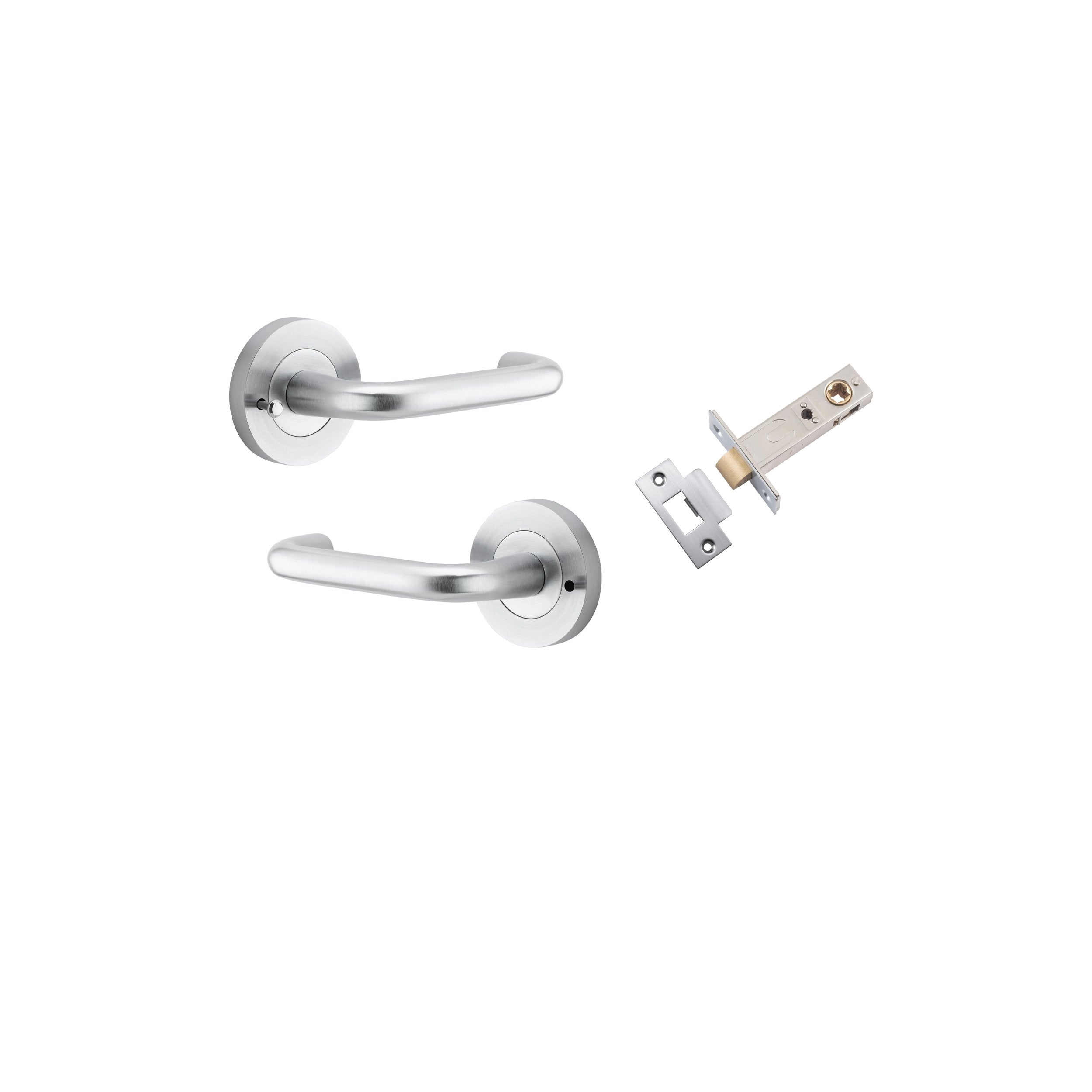

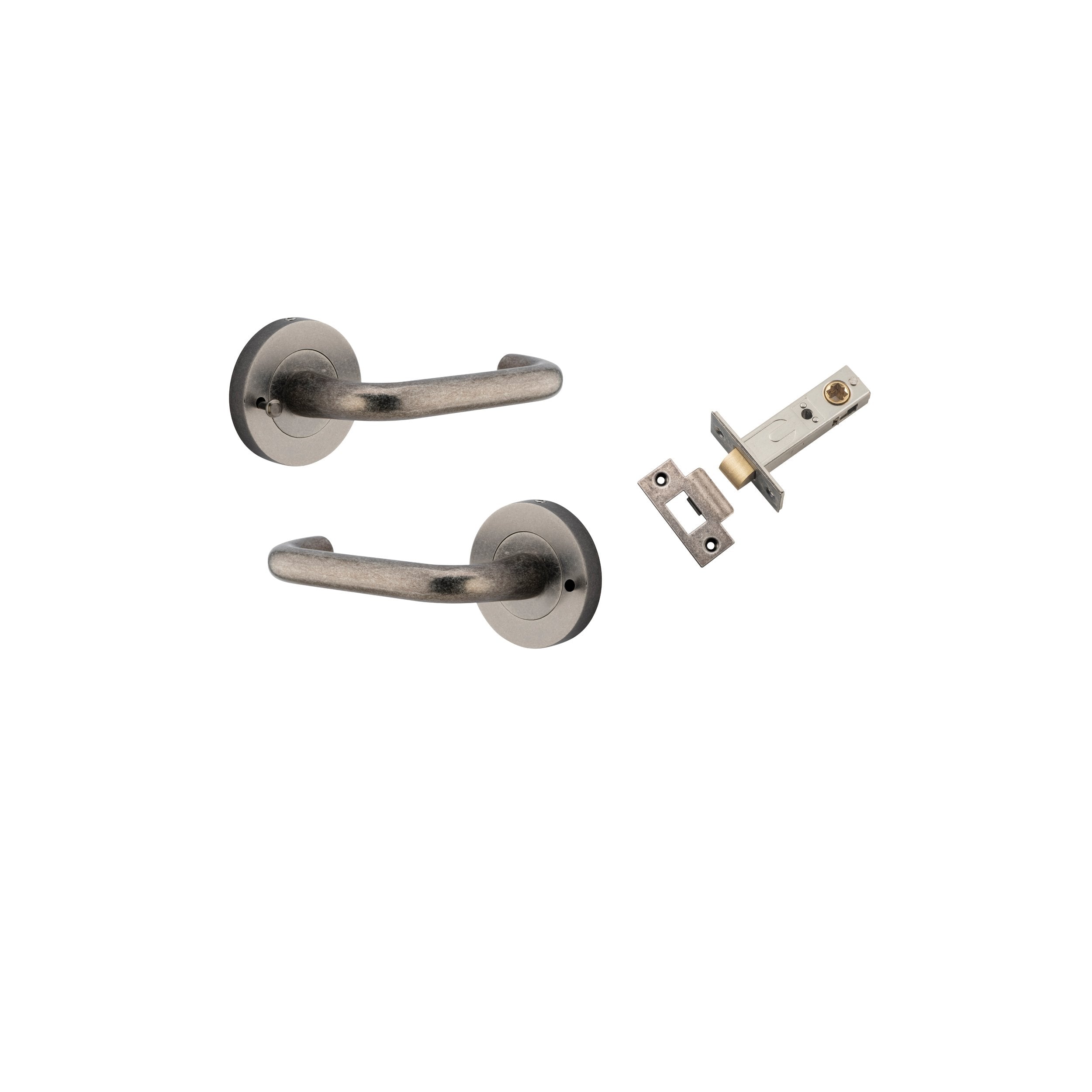

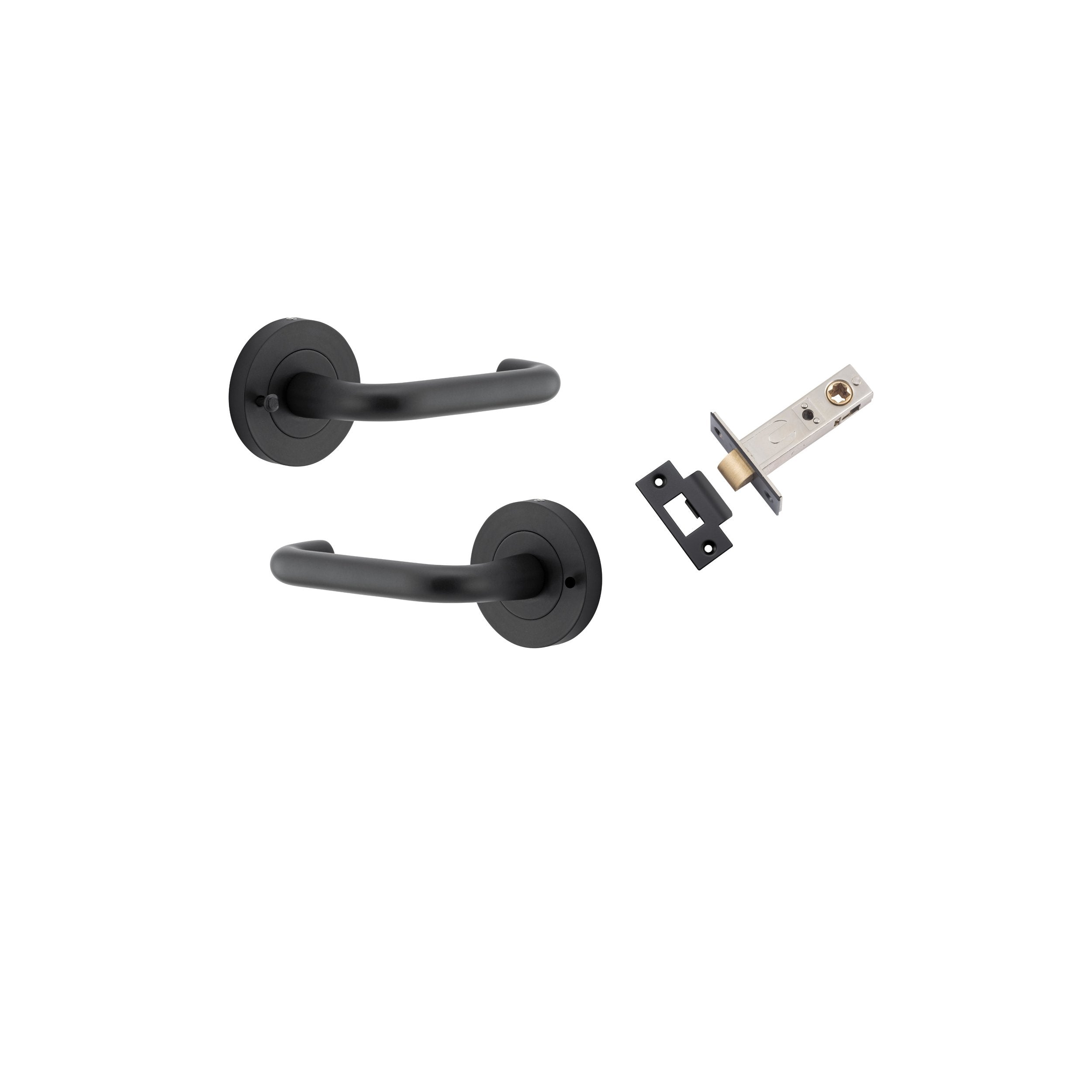

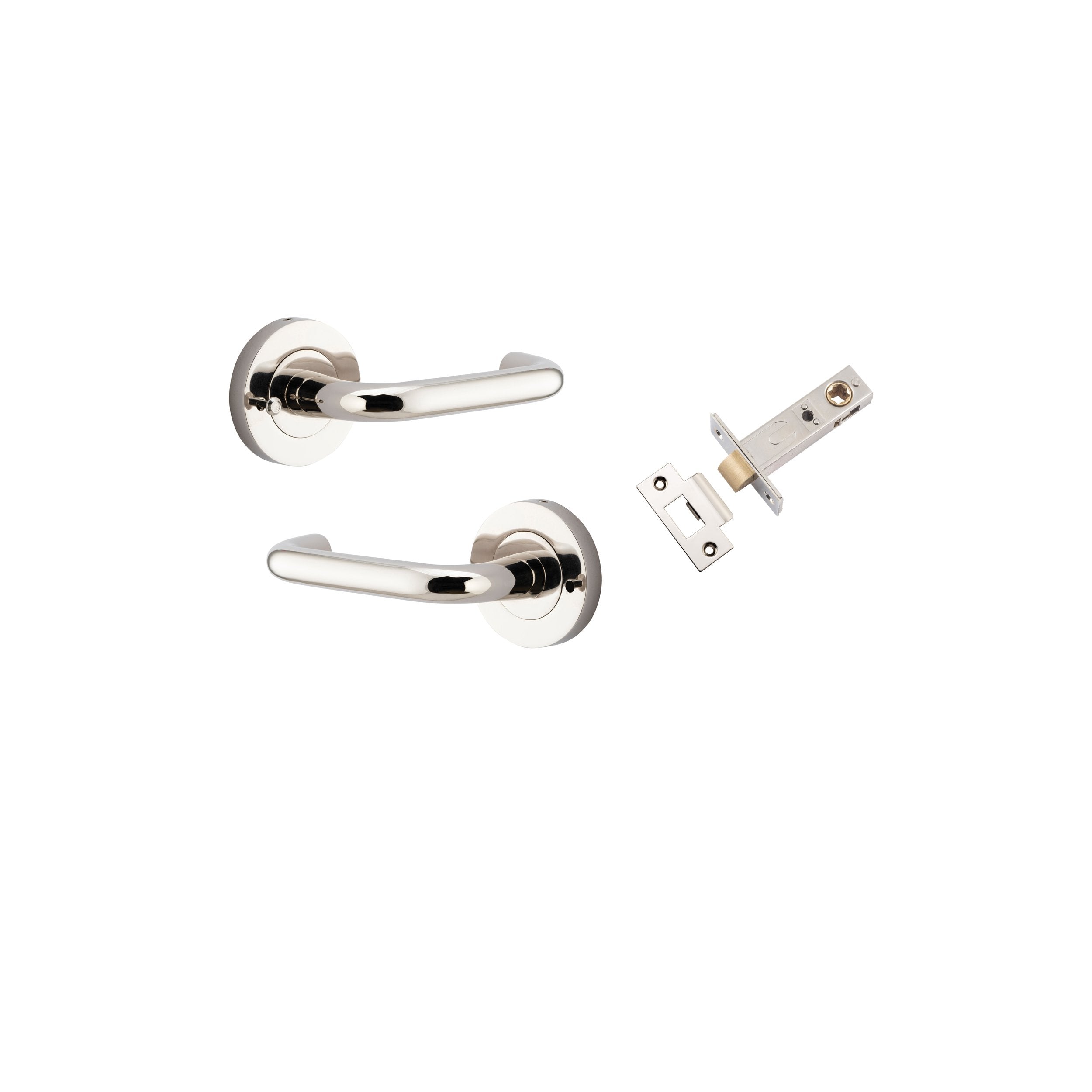

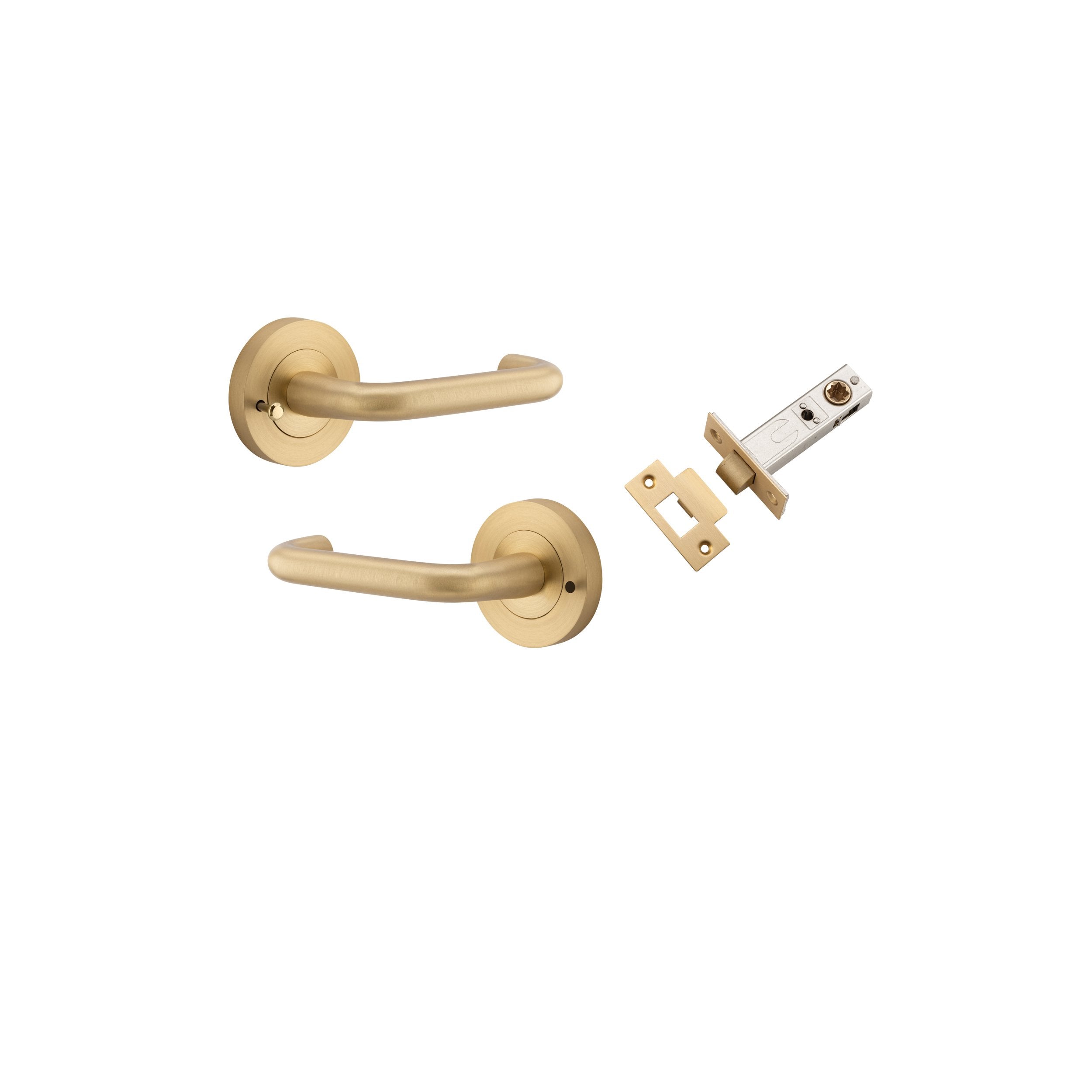

2 x Oslo Levers on Round Roses with Inbuilt Privacy Pin to suit
1 x Tube Latch Privacy Backset 60mm
1 x Face Plate
1 x Striker Plate
1 x Inbuilt Privacy Spindle
22 x Screws
1 x Dust Box
1 x Allen Key
2 x Grub Screws
1 x Drill Template
1 x Instruction Manual
| Backplate Diameter: | 58mm |
|---|---|
| Height: | 58mm |
| Width: | 58mm |
| Length: | 118mm |
| Projection: | 57mm |
| Centre to centre: | 41.5mm |
Material: Solid Brass
