Description: Understated and chic, the Osaka lever complements both neutral interiors and bold design through its minimalist rounded edges and flat surface. The Osaka lever can be purchased as a passage, privacy or entrance kit, which includes all components required for your door to function. As part of the Osaka whole-of-home collection, a matching half moon pull, and range of cabinet ware is also available.
For external doors that need high security locks, including front and back entrance doors, garage access, patios and storerooms.
Notes: All Osaka levers and backplates have been successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014). For more details contact a member of our sales team. This product includes all components required to install on your door. Euro and privacy punch outs are 85mm CTC. Half sets are not available in Iver kits.

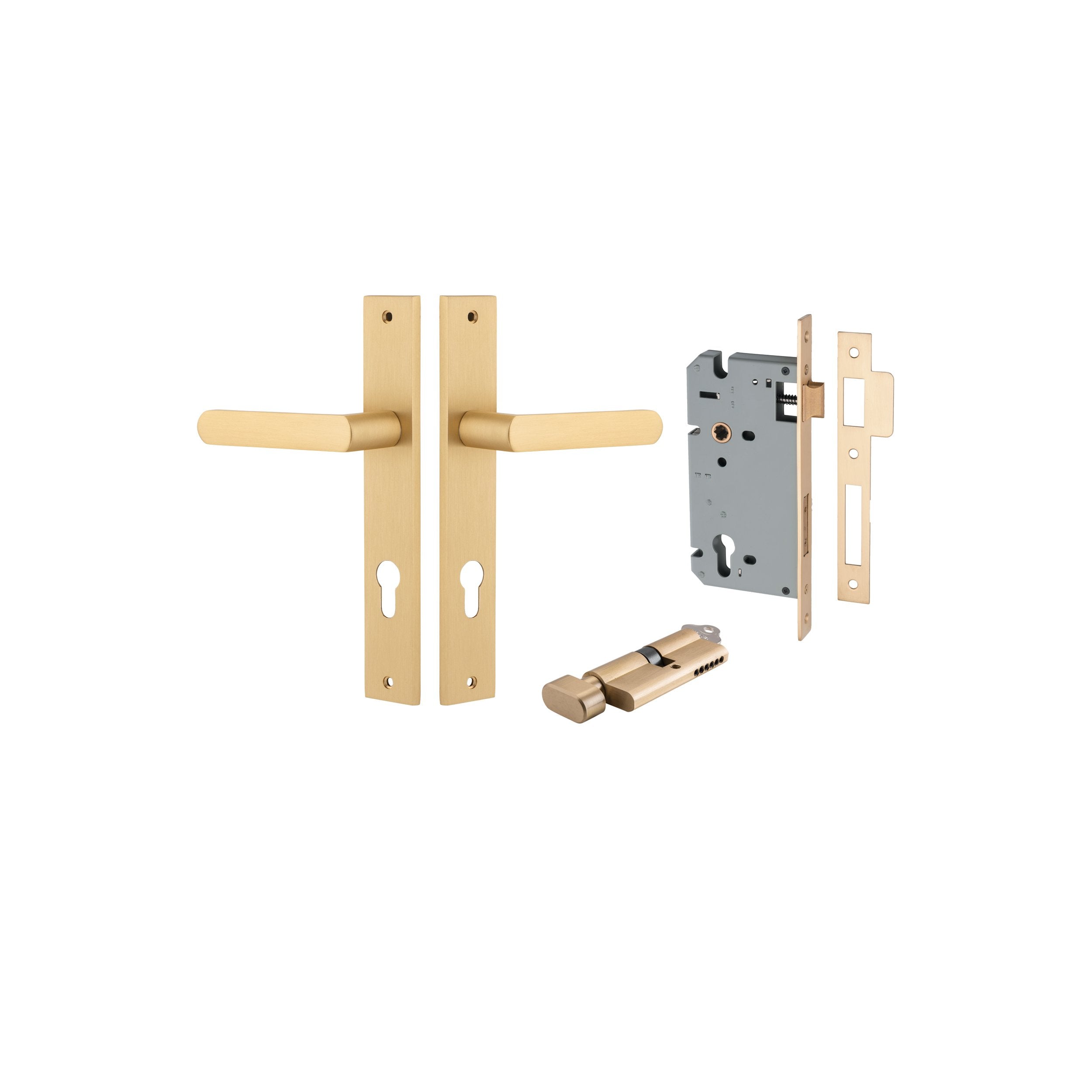

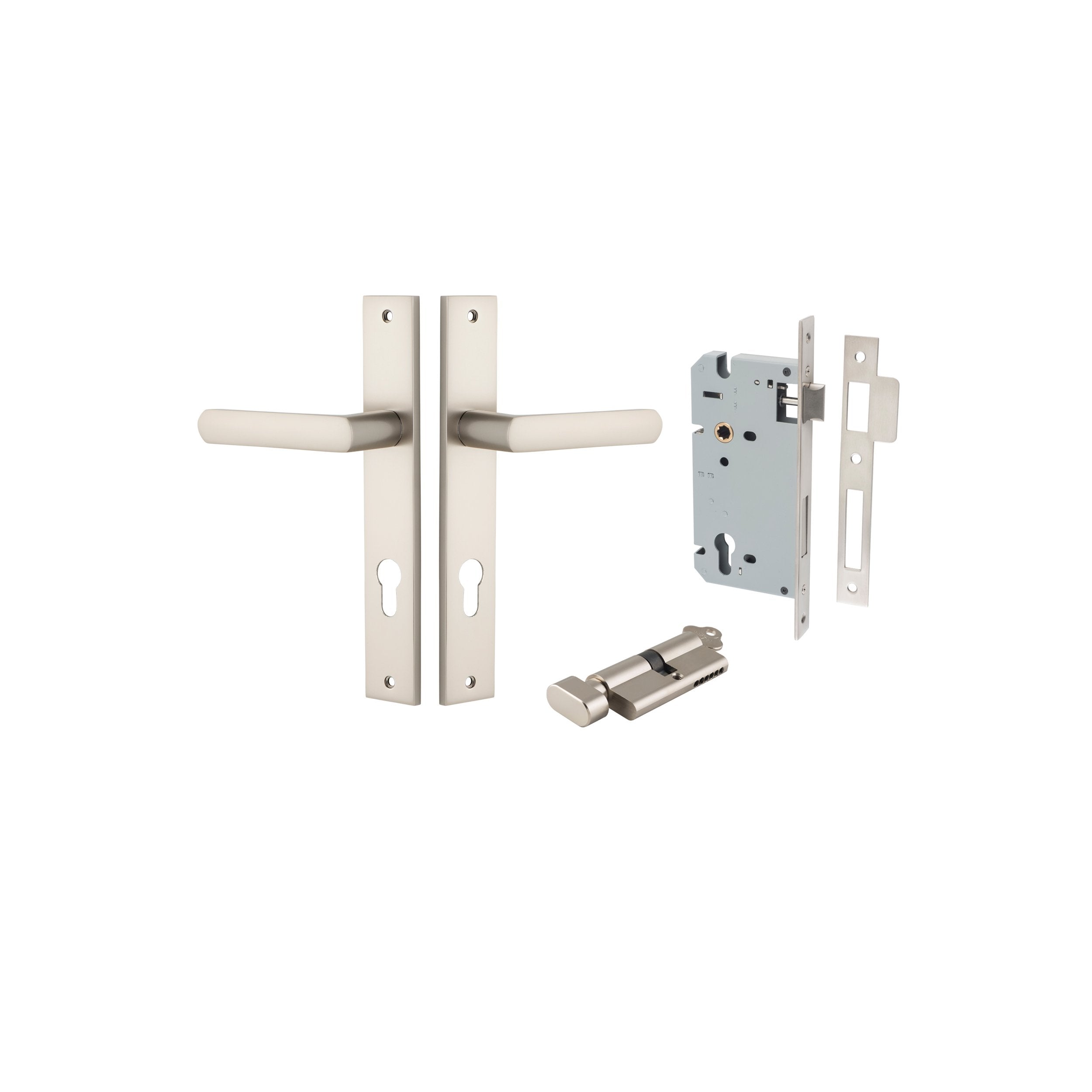

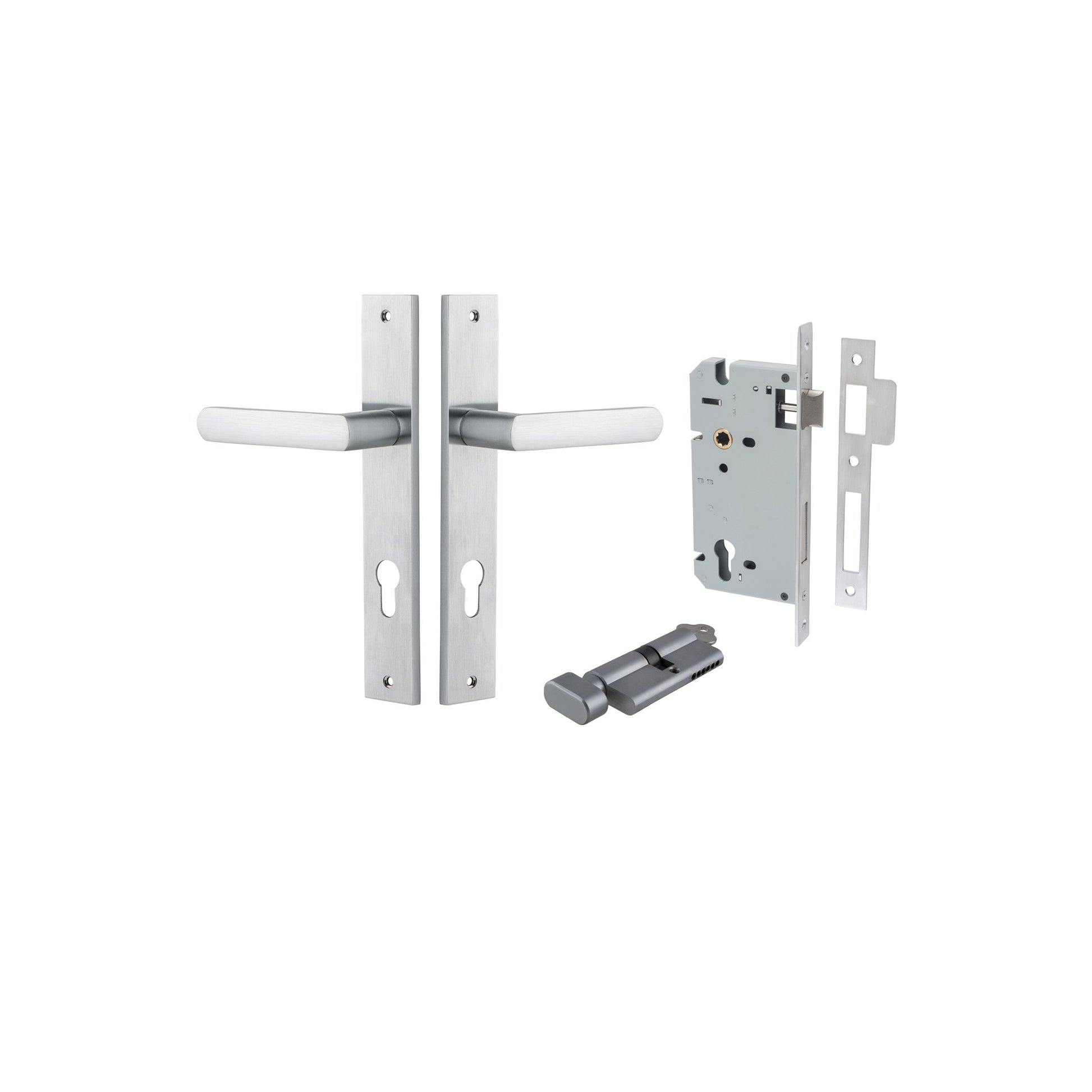

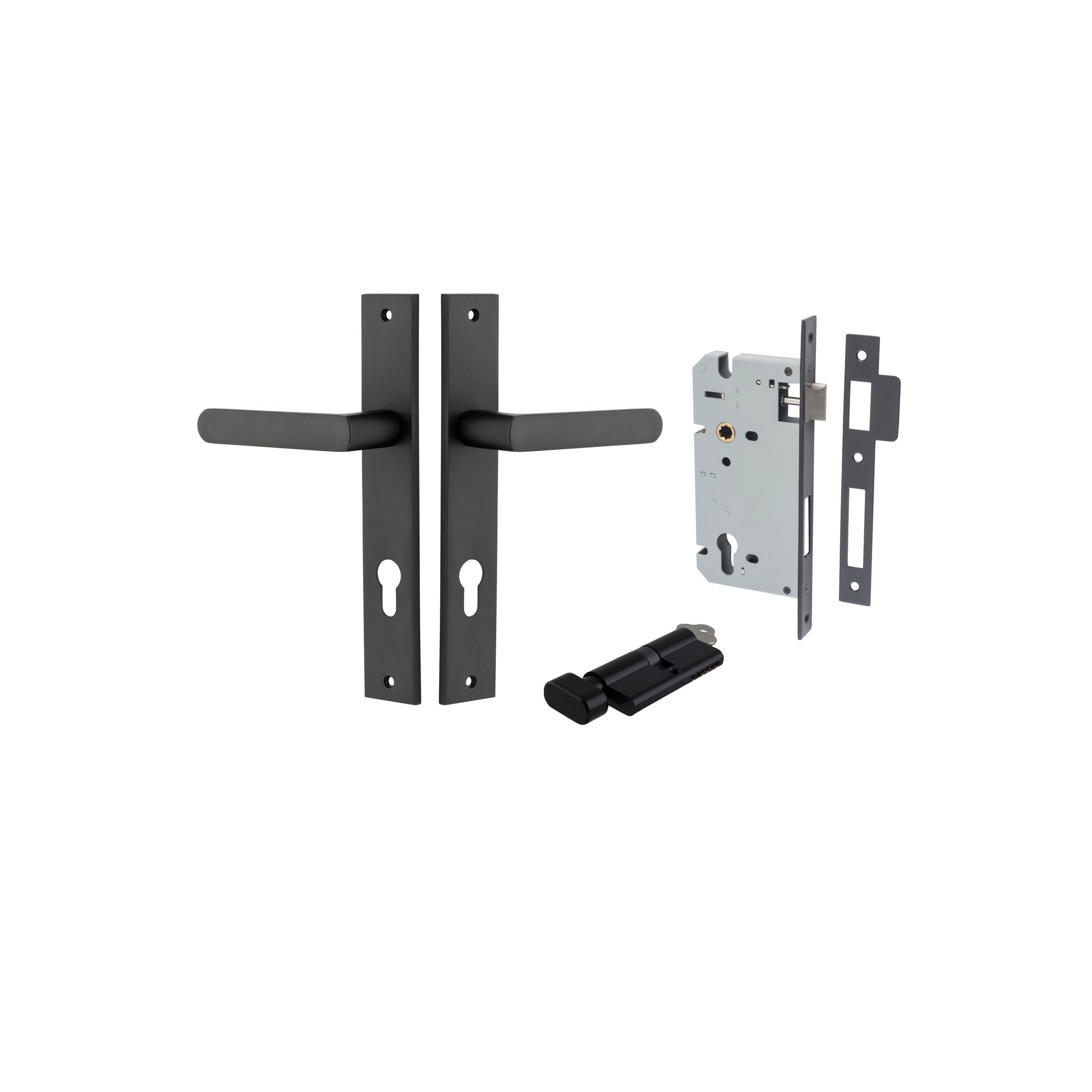

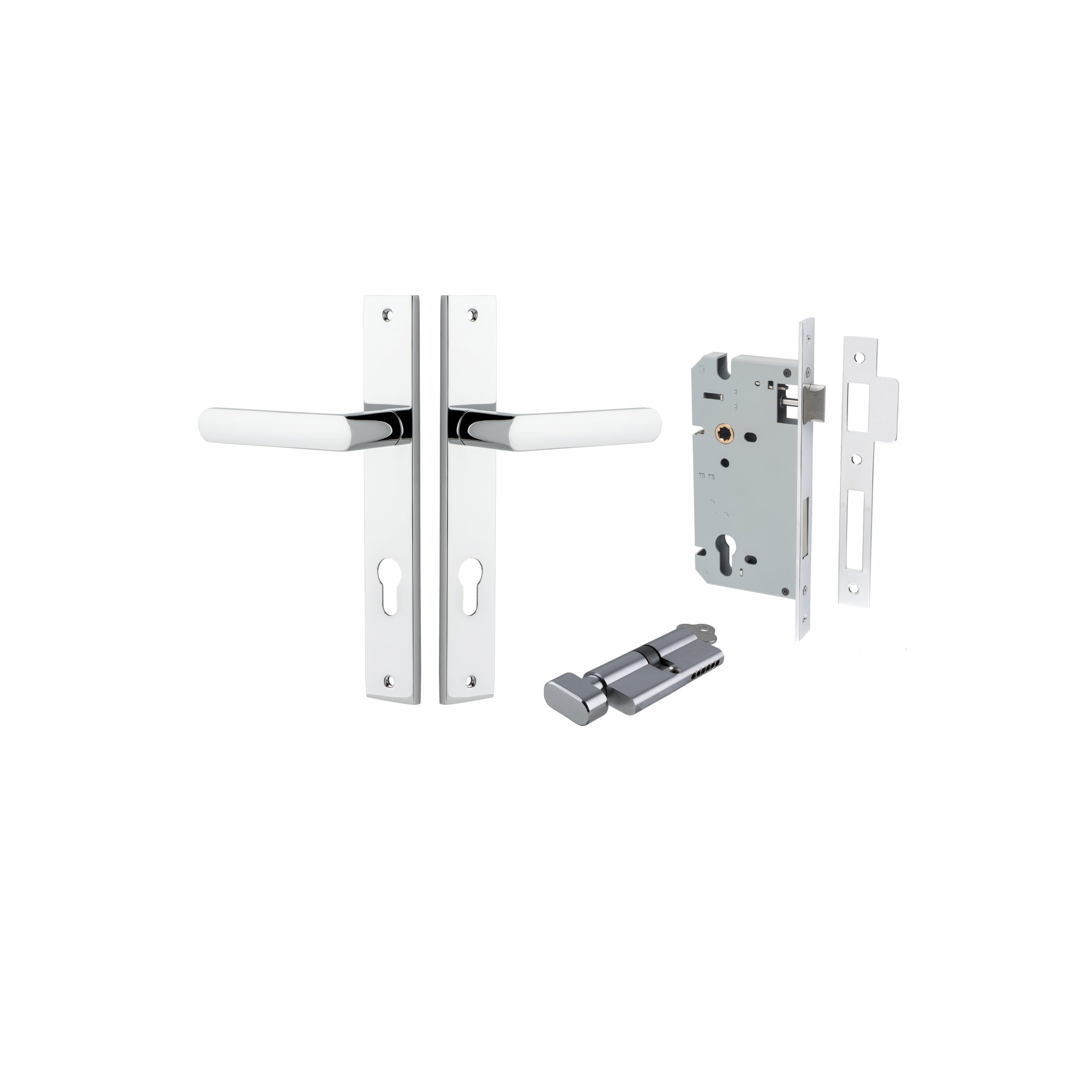

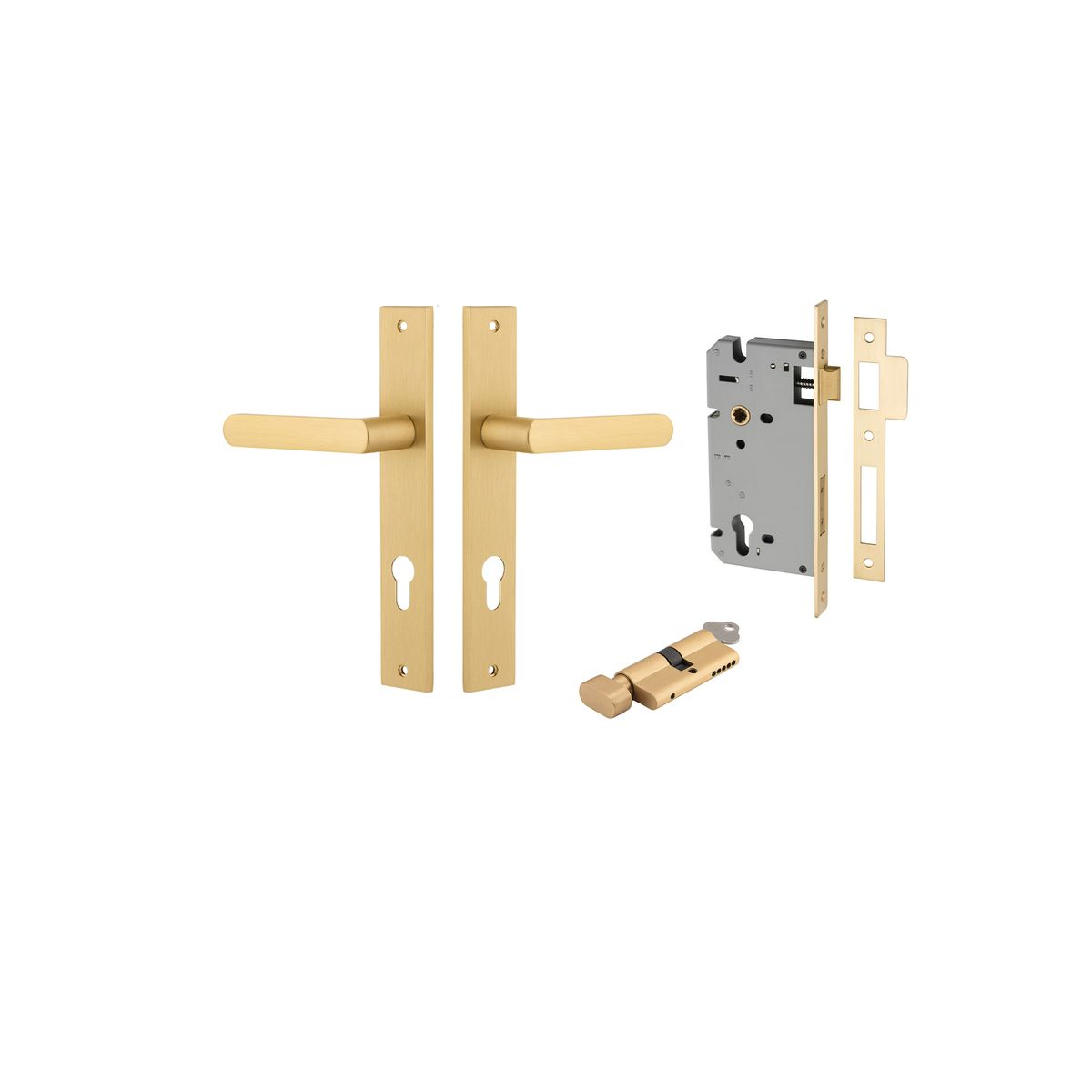

2 x Osaka Levers on Rectangular Backplate
1 x Euro Mortice Lock CTC85mm Backset 60mm
1 x Face Plate
1 x Striker Plate
1 x Euro Cylinder 6 pin
2 x Keys
1 x Standard Spindle
2 x Sprung Spindles
2 x Tie Bolts
18 x Screws
1 x Dust Box
1 x Drill Template
1 x Instruction Manual
Cylinder Function: Key/Thumb Turn
| Backset: | 60mm |
|---|---|
| Height: | 240mm |
| Width: | 38mm |
| Length: | 120mm |
| Projection: | 52mm |
| Centre to centre: | 85mm |
