Description: Inspired by traditional French Provincial design, the Annecy pays homage to its namesake, while providing a universally refined choice. A classic style with a slim rectangular handle and banded detail, the beauty of this lever is not bound by trends and will stand the test of time. The Annecy lever can be purchased as a passage, privacy or entrance kit, which includes all components required for your door to function.
For internal doors where a lock is not required, including bedrooms, living rooms, hall doors and laundries.
Notes: All Annecy levers and backplates have been successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014). For more details contact a member of our sales team. This product includes all components required to install on your door. Euro and privacy punch outs are 85mm CTC. Half sets are not available in Iver kits.

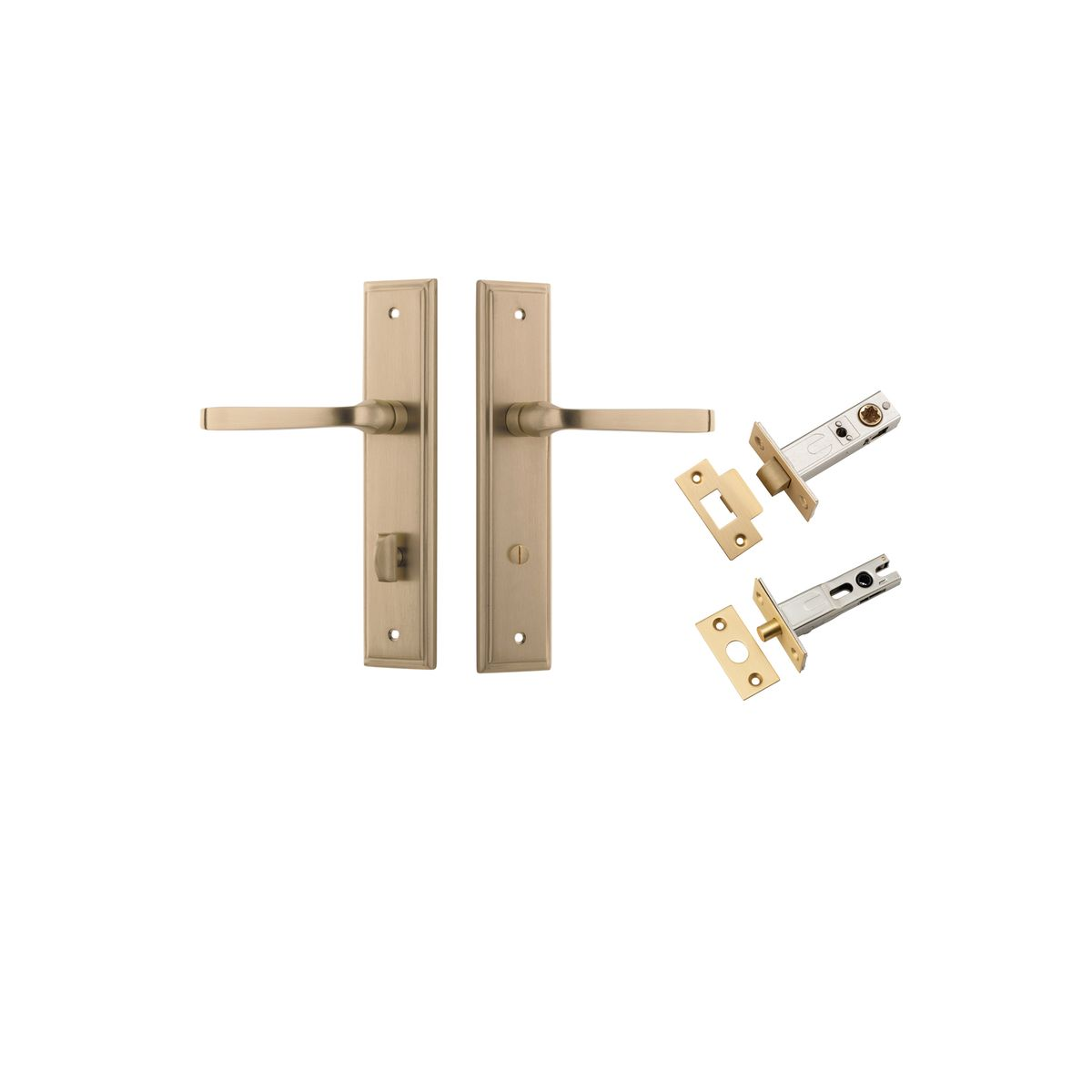

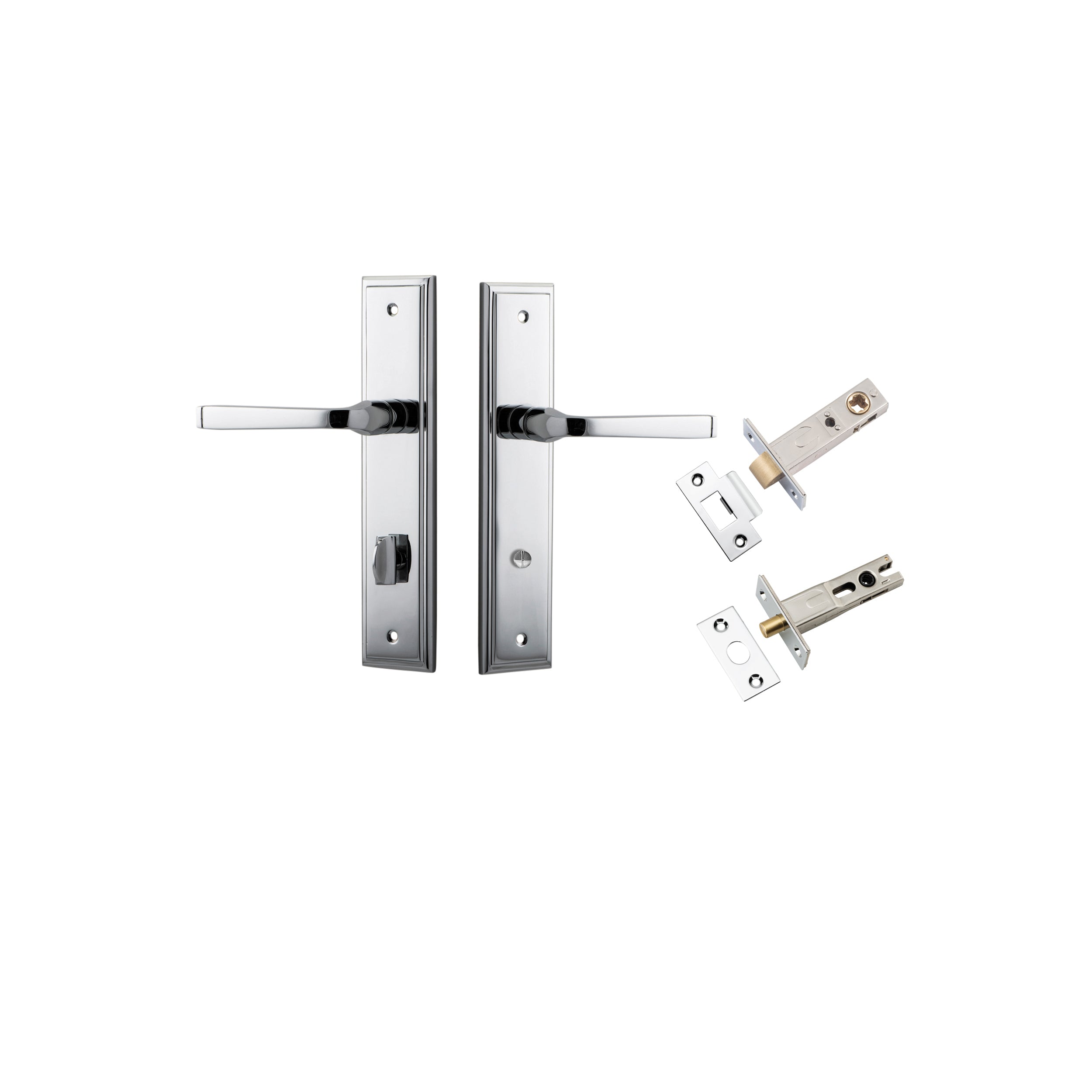

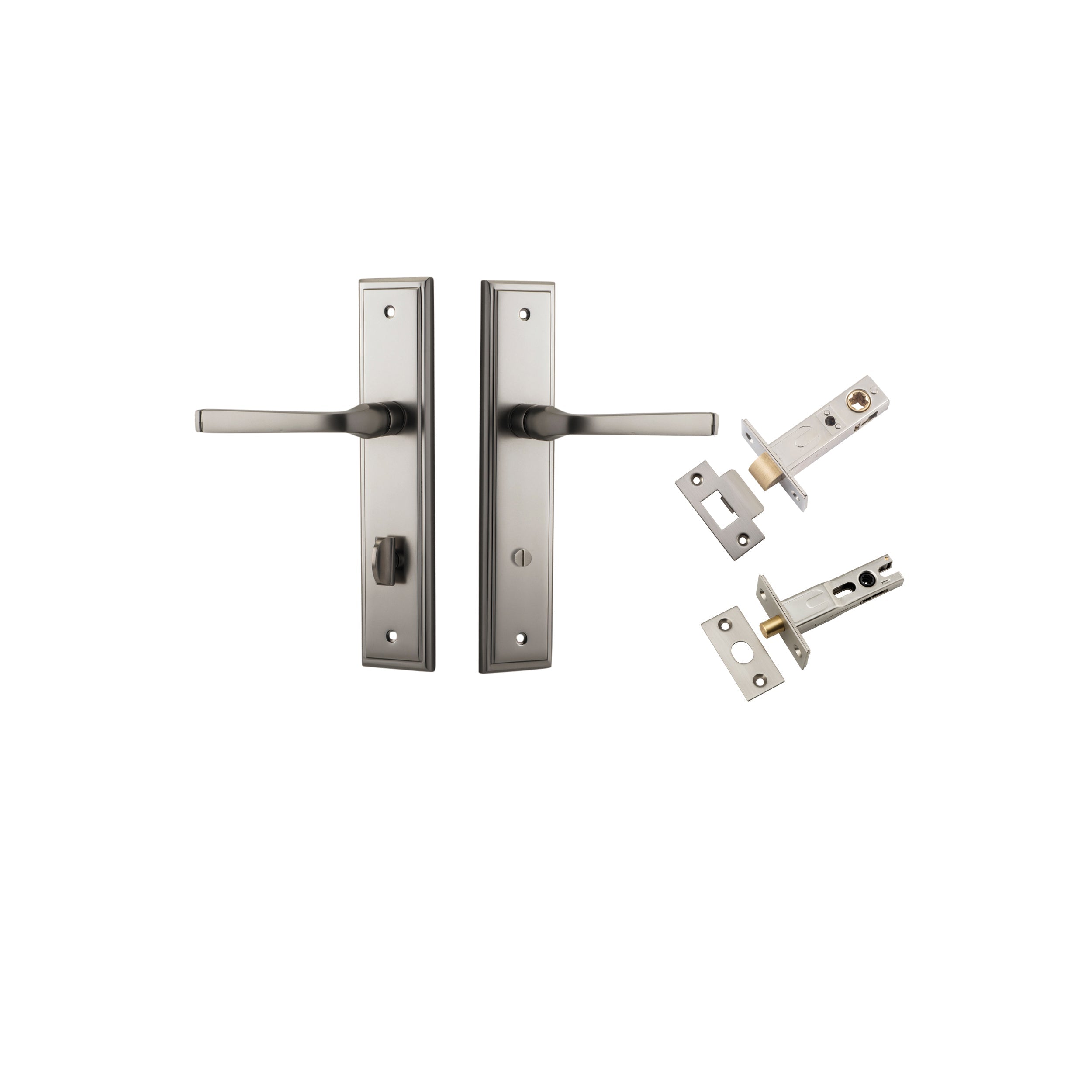

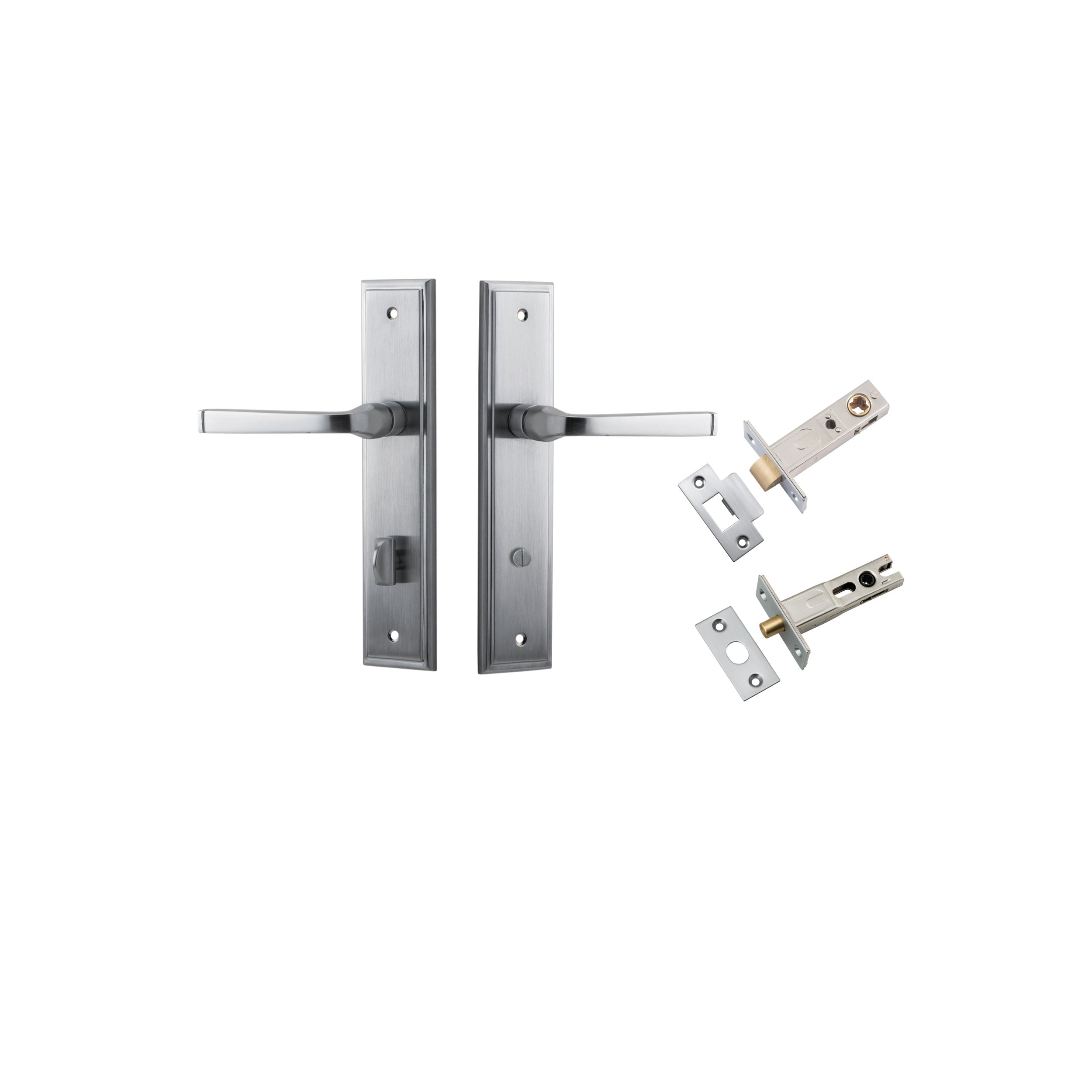

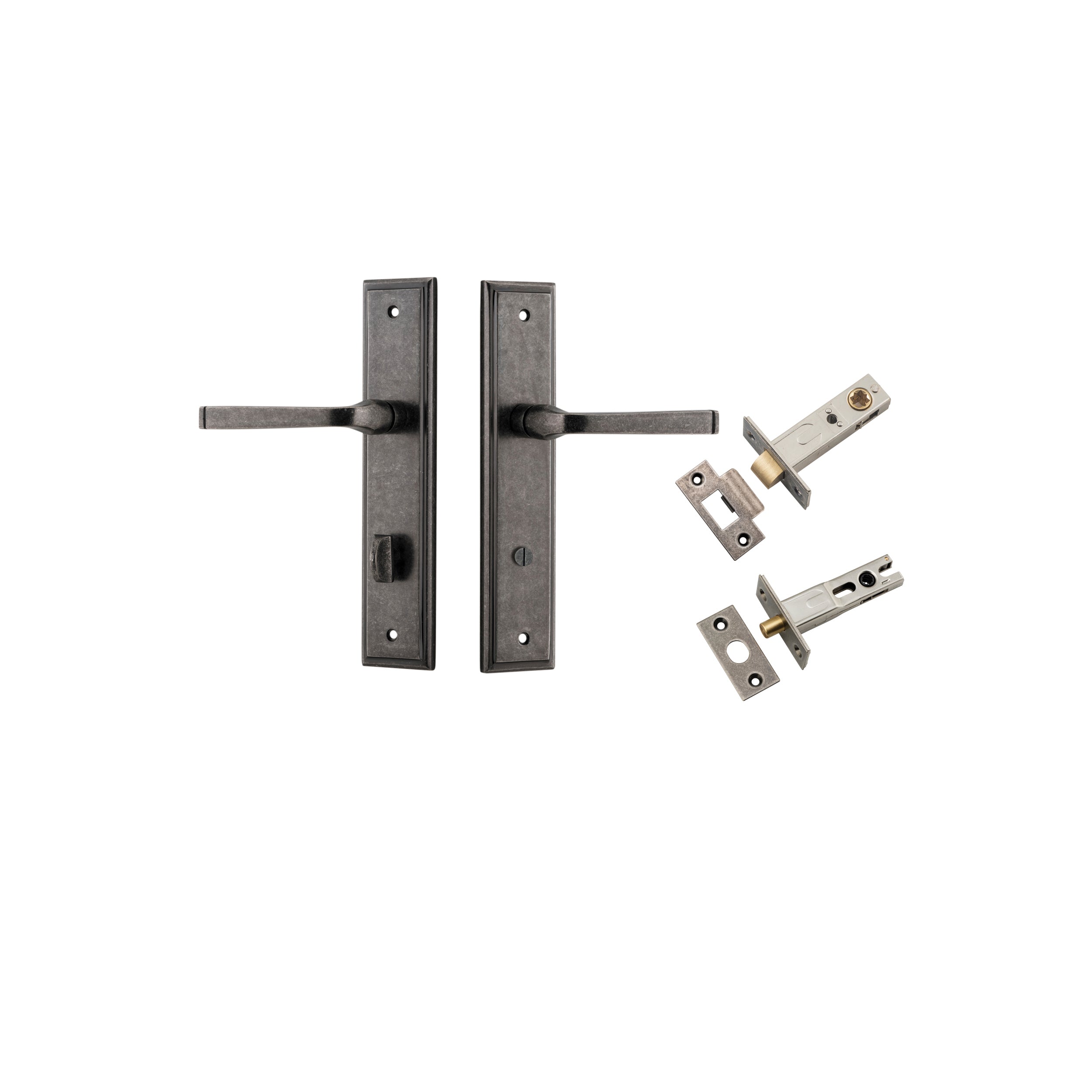

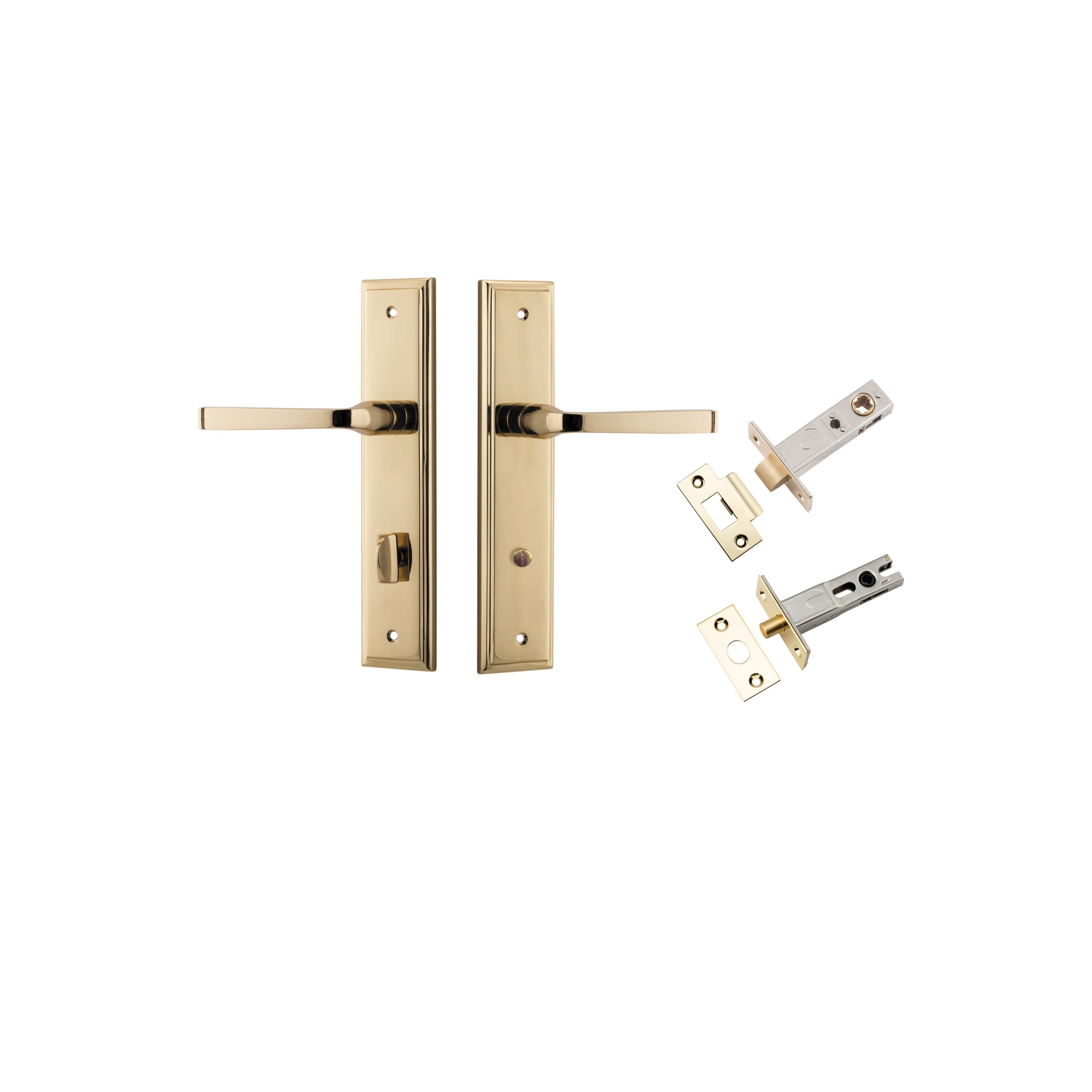

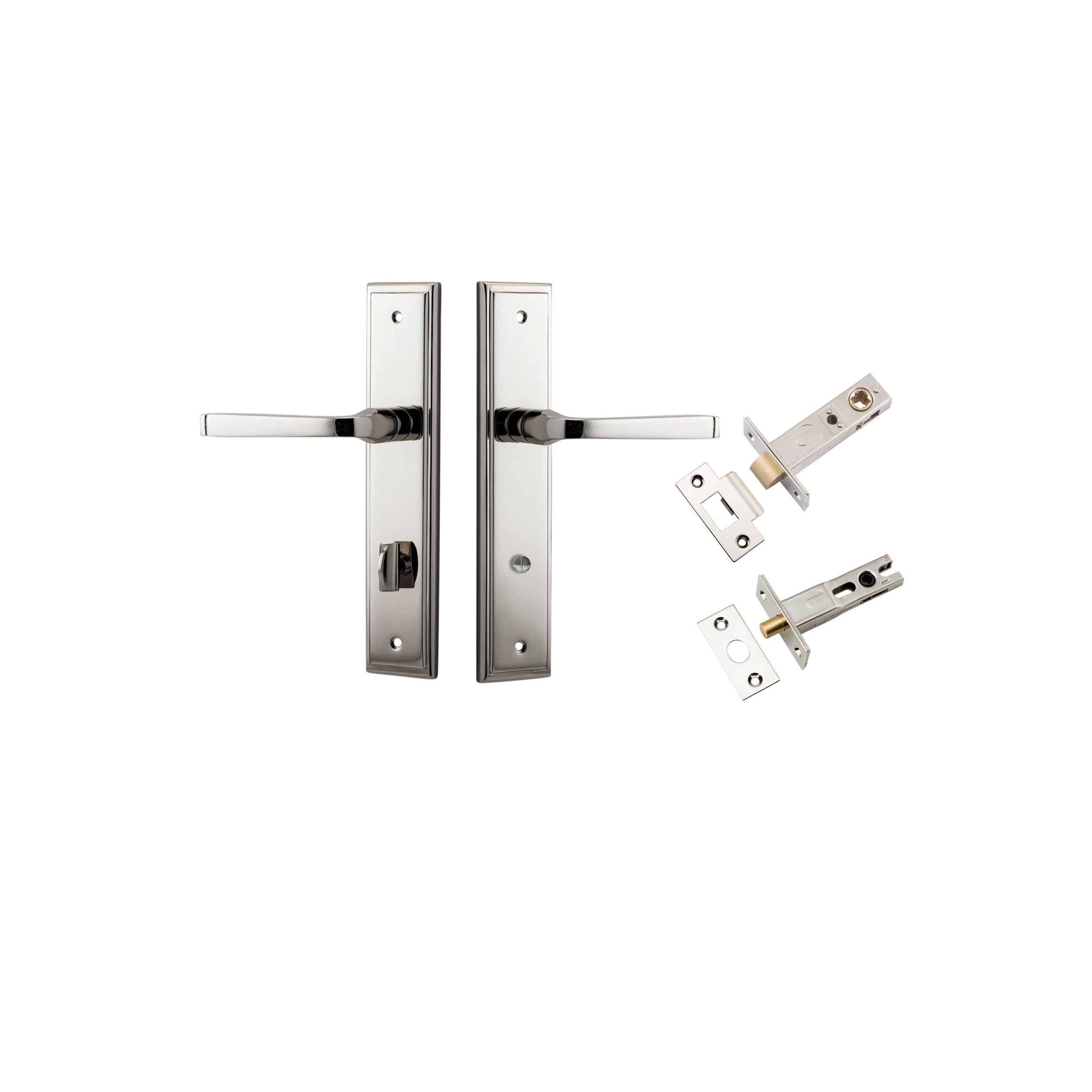

2 x Annecy Levers on Stepped Backplate
1 x Tube Latch Split Cam Backset 60mm
1 x Face Plate
1 x Striker Plate
1 x Privacy Bolt Round Backset 60mm
20 x Screws
2 x Tie Bolts
1 x Standard Spindle
2 x Sprung Spindles
1 x Privacy Adaptor
2 x Dust Boxes
1 x Drill Template
1 x Instruction Manual
| Height: | 237mm |
|---|---|
| Width: | 50mm |
| Length: | 117mm |
| Projection: | 66mm |
| Centre to centre: | 205mm |
